Product Introduction

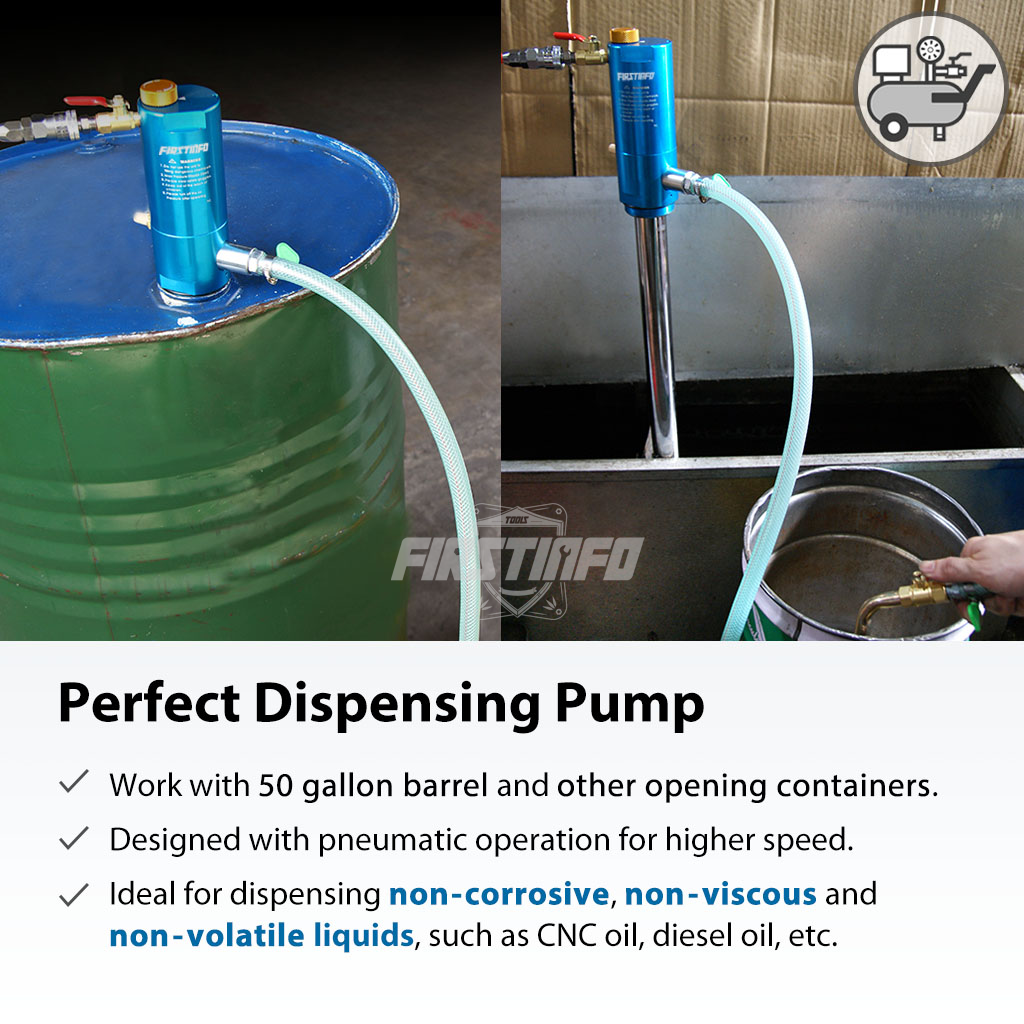

A1182 Air / Pneumatic Piston Oil / Liquid / Fluid Pump / Extractor / Bleeder
SPEC:
50 GAL FILLING ONLY NEED 25 MINUTES! (CPC CIRCLUATION OIL R68)
Ideal For 50 Gal. pneumaic pump dispenser.
Simple and easy to operate filling non-corrosive liquids.
Pneumatic operational non-spark.
Piston desing for low noise and stable operate.
Provide with the check valve can be control the fluid to filling steady.

Specifications:
Air Inlet..........................................1/4"
Air Hose...................................3/8"(ID)
Avg. air cons............................2.5CFM
Working pressure..................30-100 Psi
2M Hose...................................1/2" ID
Flow......................................7-11 l/min
Oil No..........................................0-120
ALL MADE IN TAIWAN & PAT.
NEW DESIGN PUMP DISPENSER.
SIMPLE AND EASY TO OPERATE FILLING FOR NON-CORROSIVE LIQUIDS.
50 GAL. PNEUMATIC PUMP DISPENSER.
PENUMATIC OPERATIONAL NON-SPARK.
EXTENSION PIPE SUITABLE FOR NARROW, DEEP & DIFFICULT SPACE FILLING.

Warning :
Can not use any other non-attached extension pipes.
Please turn on the fluid outlet valve before operating.
Do not use the unit to filling dangerous chemicals.
Max. pressure : 100 PSI
Please wear safety goggles.
Keep out the reach of children.

SIZE(L*W*H)

23*24*45 (CM)

N.W.

2.7 (KG)

G.W.

3.7 (KG)

Carton SIZE



N.W. per Carton



G.W per Carton



CUFT
