Product Introduction



Feature:
1. Patented product.
2. Energy-saving tool designed for tire change.
3. Small size, light weight, easy to carry & storage.
4. Input square: 1/2"
5. Output square: 1/2"
6. 3.4:1 torque multiplication.
7. Max. rated output: 600Nm (443Ft-lb)
8. Accuracy tolerance: ±5%.
9. The tool is adapted for tire change of car and van in automotive repair industry.
10. Supplied with the rubber-cover reaction bar for tire rim protection purpose.
Details:
1. Input Square(F): The material is CR-V alloy steel.
2. Output Square(M): The material is CR-V alloy steel brings better stability and reliability.
3. Main body: Small and light weight benefits as socket size is easy for operation. The mechanism device is patented. The material is Chrome molybdenum alloy steel.
4. Handle: The movable reaction handle is suit for different working place.

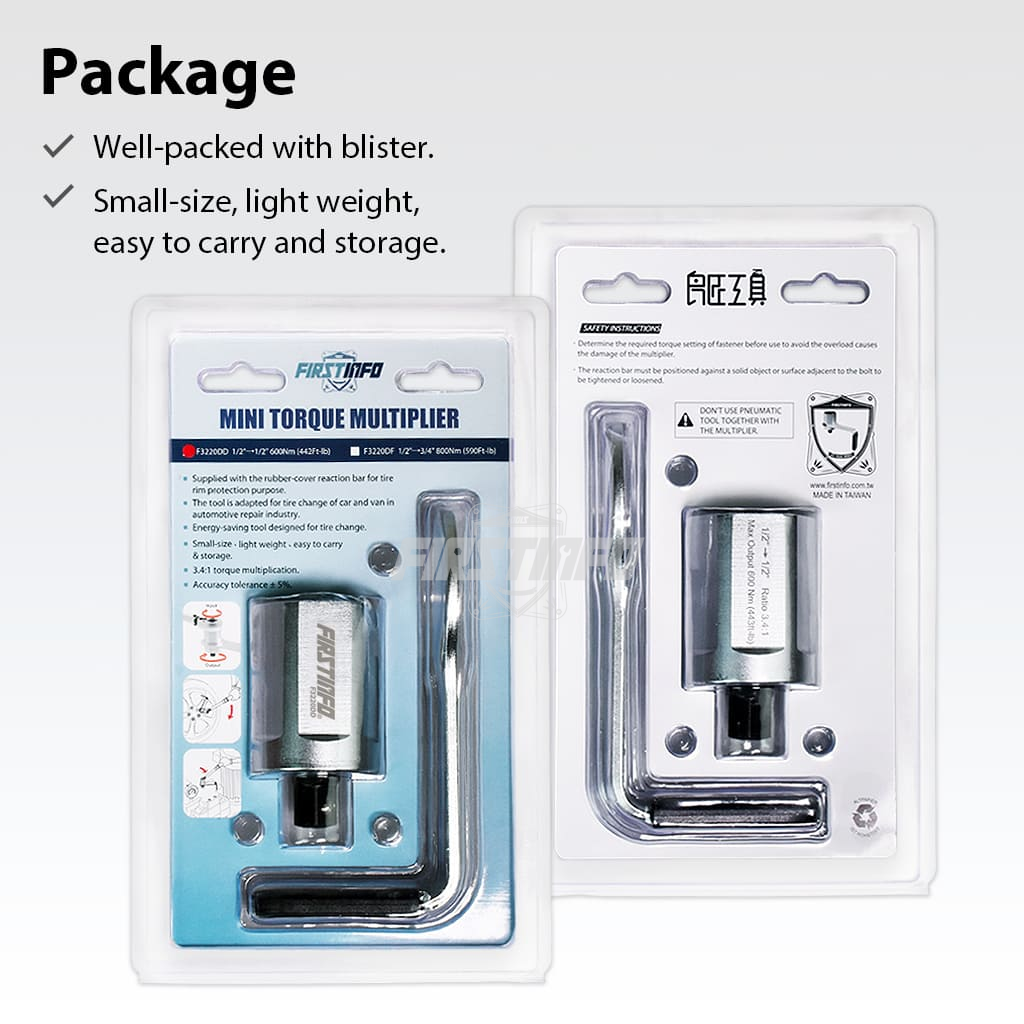

Package

20 set / carton

N.W.

1.03 (KG)

G.W.

1.05 (KG)

SET SIZE

26*16*6 (CM)

Carton SIZE

50*29*28(CM)

CUFT

 1.4'
